ZKTeco BioFace D1 in Uganda

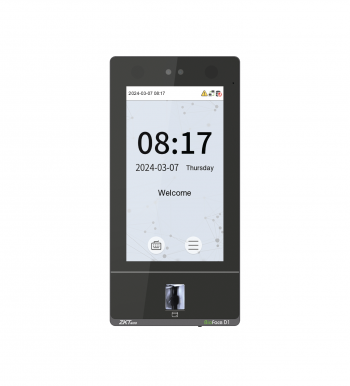

The ZKTeco BioFace D1 is a high-end, SIP-ready terminal that redefines access control Uganda with its expansive 7-inch TFT color touch screen. Engineered for elite Kampala installations, it features cutting-edge visible light facial recognition and in-glass fingerprint technology for rapid, touchless entry. With an IP65 waterproof rating and advanced anti-spoofing algorithms, it provides maximum security for outdoor and indoor environments. Trust ZKTeco Uganda for this multi-biometric powerhouse that seamlessly integrates HD video intercom and professional time attendance Uganda protocols.
Large 7-inch HD color touch screen
Advanced in-glass fingerprint and facial recognition
Rugged IP65 waterproof and dustproof design
Specifications
| Display screen : | 7" TFT color touch LED, 600×1024 resolution |
| Camera : | WDR binocular 1MP |
| Operating System : | Linux |
| CPU / RAM / ROM : | Dual Core 1GHz, 512MB RAM, 8GB ROM |
| Speaker & Microphone : | 8Ω 1W speaker, omni-directional mic (-32dB) |
| Fingerprint Sensor : | In-Glass Fingerprint (Z-ID) |
| Authentication Methods : | Face / Fingerprint / Card / Password |
| Template Capacities : | Fingerprint 10,000, Face 10,000, Card 50,000 |
| User & Transaction Capacity : | 50,000 users, 300,000 transactions |
| Biometric Speed : | <0.5 sec="" (fingerprint),=""><0.35 sec=""> |
| Touchless Facial Range : | 30–200 cm |
| FAR / FRR : | FAR ≤0.01% (Face), ≤0.0001% (Fingerprint); FRR ≤0.02% (Face), ≤0.01% (Fingerprint) |
| Biometric Algorithm : | ZKFace V4.0, ZKFingerprint V13.0 (Standard) |
| Card Type : | ID 125kHz / IC 13.56 MHz (Optional) |
| Communication : | TCP/IP, RS485, Wiegand, Wi-Fi (Optional), USB, Aux Inputs, Electric Lock, Door Sensor, Exit Button |
| Standard Functions : | ADMS, Photo Capture, Access Levels, Anti-Passback, Schedule Bell, SIP Client v2.0, ONVIF, AC & TA Push Protocols |
| Optional Functions : | IC Card, Wi-Fi, Wireless Doorbell |
| Power Supply : | DC 12V 3A (Optional) |
| Operating Temperature & Humidity : | -5°C to 45°C, 10–90% RH |
| Dimensions & Weight : | 238 × 115 × 22.3 mm, 0.622 kg |
| Supported Software & Apps : | BioTime 9.5, BioTime Cloud, ZKBio CVSecurity, ZKBioTime App |
| Installation : | Wall-mount, compatible with Asian Gang-box / Single Gang-Box |
| Ingress & Certifications : | IP65, ISO14001, ISO9001, CE, FCC, RoHS |
Key Features
Applications & Use Cases
Premium Corporate Lobbies
Provide a high-tech visitor experience in Kampala offices with HD SIP video intercom
Secure Residential Apartments
Manage luxury housing entry in Uganda using secure facial authentication and mobile app integration
Industrial Perimeter Access
Deploy durable IP65-rated terminals at Entebbe warehouses to handle dust and tropical weather
Centralized Workforce Management
Sync employee logs from multiple Uganda branches to BioTime Cloud via the BEST protocol
