ZKTeco ZKB203S in Uganda
The ZKB203S is a high-performance 2D wireless image barcode scanner engineered for the demanding retail and logistics sectors. As a versatile biometric system accessory in Uganda, it features advanced ZKTeco Uganda imaging technology to quickly read barcodes from mobile screens and printed surfaces. Perfect for Kampala warehouses and supermarkets, it offers a 60m wireless range and a convenient magnetic charging base. Improve your time attendance Uganda workflow and inventory accuracy with this reliable, ergonomic security installation peripheral.
Fast reading of all 1D/2D barcodes

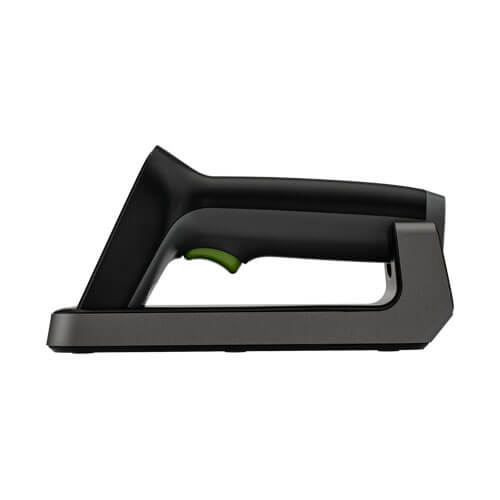

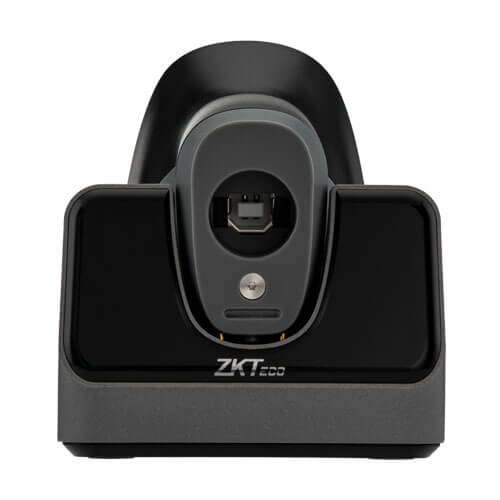

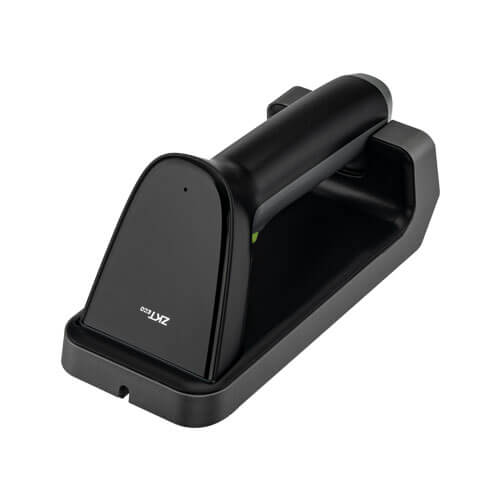

Convenient magnetic charging base for stability
Long-range 60-meter stable wireless connectivity
Specifications
| Model Name: | ZKB203S |
| Product Type: | 2D Wireless Image Barcode Scanner |
| Dimensions (L×W×H): | 167.3 × 70.5 × 81.5 mm |
| Weight: | 425 g |
| Voltage & Current: | 5 VDC, Operating 190 mA (Standby 60 mA) |
| Color Options: | Black & Gray (White optional) |
| Host Interface: | 2.4G (2.4G + Bluetooth optional) |
| User Indicators: | LED Decode Indicator, Adjustable Beeper |
| Scan Mode: | Manual Reading Mode |
| Aiming Light: | 650 nm true red LED |
| Illumination: | White LED |
| Scan Speed: | 10 cm/second |
| Field of View: | 41° (H); 31° (V) |
| Image Sensor: | 640 × 480 pixels |
| Minimum Print Contrast: | 25% |
| Tolerances: | Roll 0°–360°, Pitch ±60°, Skew ±55° |
| Minimum Resolution: | Code39: 4mil; Code128: 4mil; DataMatrix: 6mil; QR: 6.7mil |
| 1D Barcode Support: | UPC-A/E, EAN-8/13, ISSN, ISBN, Code128, ISBT128, Code39, Code93, Code11, Interleaved/Matrix/Industrial/Standard 2 of 5, Codabar |
| 2D Barcode Support: | QR, Micro QR, Data Matrix, PDF417, Micro PDF417, MaxiCode, Aztec, HanXin Code |
| Radio Range: | 2.4G up to 60 m; Bluetooth up to 15 m |
| Wireless Modes: | Synchronous Mode, Storage Mode |
| Battery Type: | 18650 Li-ion |
| Battery Capacity: | 2000 mAh |
| Operating Time: | ≥ 12 hours per charge |
| Standby Time: | ≥ 4 weeks |
| Charging Time: | 5 hours (USB) |
| Operating Temperature: | -20°C to 50°C |
| Storage Temperature: | -40°C to 70°C |
| Humidity: | 5%–95% non-condensing |
| ESD Protection: | ±2KV Direct, ±8KV Air |
| Ambient Light Immunity: | Up to 10,000 lux |
| Decode Ranges: | Code39 4mil (4–10 cm), 5mil (4–13 cm), 13mil (4–25 cm), 20mil (6–30 cm); EAN-13 13mil (3–25 cm); UPC-A 13mil (3–25 cm); QR Code 20mil (5–20 cm); PDF417 13mil (5–20 cm). |
Key Features
Applications & Use Cases
Supermarket Checkouts
Rapidly scan high-density and damaged barcodes in busy Kampala retail stores
Logistics and Couriers
Utilize the 60m wireless range for efficient parcel tracking across Uganda
Mobile Ticket Verification
Capture electronic QR codes directly from smartphones at events in Kampala
Pharmacy Inventory
Ensure precise tracking of medical supplies with high-performance 2D image decoding
