ZKTeco SC800 in Uganda

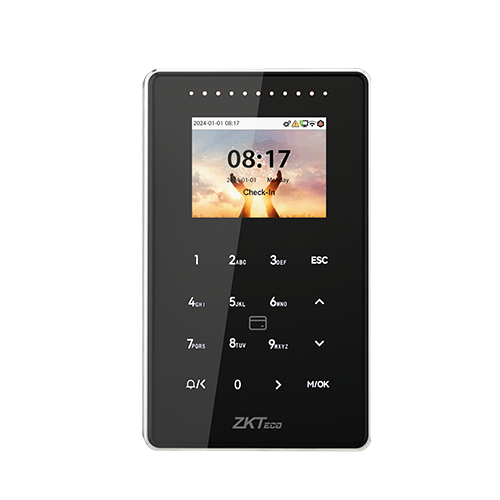

The ZKTeco SC800 is a premium, Linux-based access control Uganda terminal specifically engineered for high-security outdoor environments. Featuring a sleek 2.5D glass panel and a rugged metal midframe, it boasts IP65 waterproof and IK04 vandal-proof ratings to endure the diverse climate in Kampala. This multi-tech device supports diverse RFID frequencies and a hidden touch keypad, ensuring a modern, touchless user experience. As a leading biometric system Uganda peripheral, it offers seamless integration for businesses requiring elite time attendance Uganda and entry management.

Rugged IP65 waterproof and IK04 vandal-proof

Supports 100,000 cards and multi-tech RFID

Sleek 2.5D glass with hidden keypad

Request a Quote Download Datasheet

Specifications

Card Capacity 100,000
Record Capacity 200,000
Display 2.4-inch TFT LCD Color Screen
Operating System Linux
Communication TCP/IP, Wiegand In/Out, RS485, OSDP (Ver2.1.7), RS232 (Printer only), Wi-Fi (Optional)
Standard Functions ID Card, Web Server, Automatic Status Switch, Self-Service Query, DST, 9-Digit User ID, Scheduled Bell, Anti-passback, HTTPS, AC Push to TA Push
Optional Functions Multi-tech Card Module, Wi-Fi, Printer

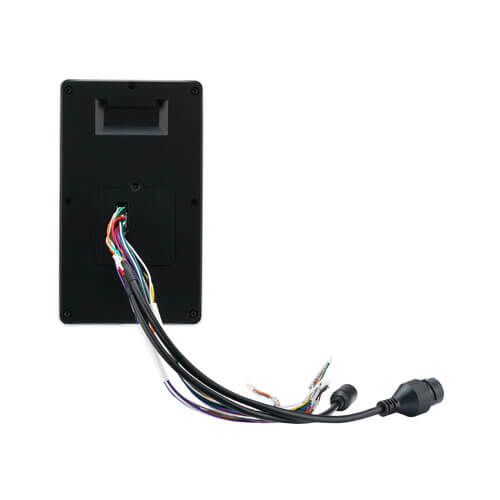

Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Auxiliary Interface 1 AUX Input
Keypad Hidden Touch Keypad
Indication Light Breathing Light (White), Status Light (Red/Green)
Power Supply DC 12V 3A
Verification Speed Fast Multi-Frequency RFID Matching
Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10%–90% RH
Dimensions 143 × 85 × 19.8 mm (Length × Width × Depth)
Net Weight 0.70 kg
Data Protection AES256 Encryption
Supported Software ZKBio Access IVS

Key Features

Massive Data Capacity: Effortlessly manages up to 100,000 cards and 200,000 logs for large-scale Ugandan enterprises
Advanced Security Protocols: Fully complies with ZKCSBL cybersecurity standards and features AES256 data protection
Multi-Frequency Technology: Supports over 100 card types including ID, IC, HID Proxy, and HID iClass modules
Extensive Connectivity Options: Features built-in TCP/IP, optional Wi-Fi, and OSDP for flexible communication with central servers

Applications & Use Cases

Outdoor Commercial Entrances

Secure Kampala business premises with a terminal resistant to heavy rain and dust

High-Traffic Industrial Sites

Deploy at Entebbe factory gates where IK04 vandal protection ensures long-term hardware safety

Modern Office Buildings

Upgrade corporate interiors with a sophisticated 2.5D glass design and touchless RFID entry

Integrated Time Management

Convert access data to attendance logs for efficient staff payroll management across Uganda

Frequently Asked Questions

The SC800 is built with an IP65 waterproof rating and an IK04 vandal-proof metal housing.

This terminal supports a massive capacity of up to 100,000 cards and 200,000 event logs.

Yes, the SC800 features optional Wi-Fi and standard TCP/IP for easy network integration.

It supports multi-tech RFID modules including 125kHz ID, 13.56MHz IC, HID Proxy, and HID iClass.

Yes, it supports Access Control push conversion to Time Attendance push protocols.

The terminal features a clear 2.4-inch TFT LCD color screen and a responsive hidden touch keypad.

ZKTeco Uganda provides comprehensive technical support, system configuration assistance, and hardware warranty for all installations.
