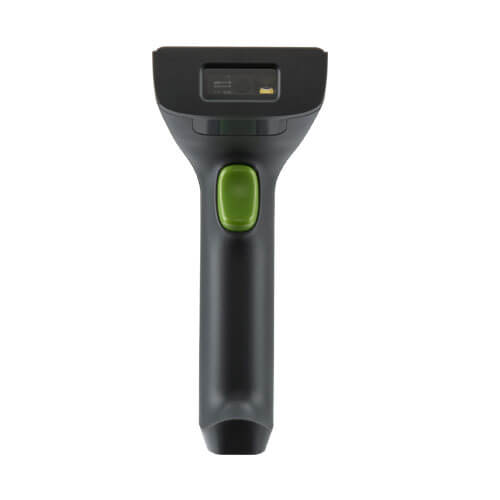

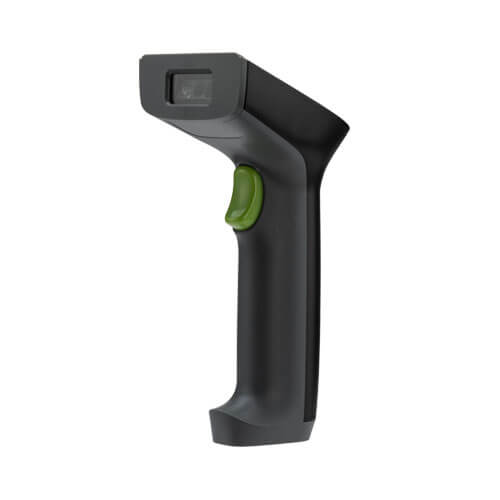

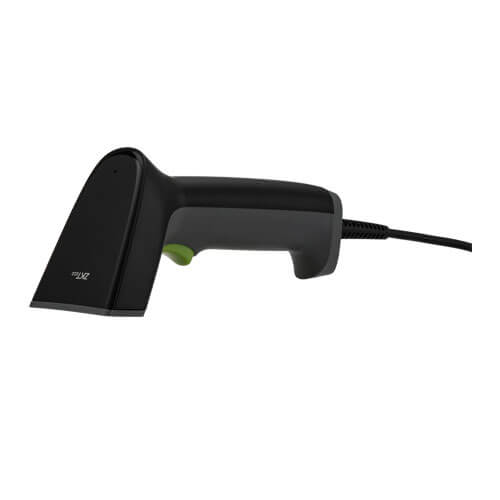

ZKTeco ZKB201S in Uganda
The ZKB201S is a high-performance 2D image barcode scanner engineered for fast and accurate data capture in the Ugandan retail and logistics sectors. As a versatile biometric system peripheral from ZKTeco Uganda, it excels at reading 1D and 2D codes from both paper and mobile screens. Perfect for Kampala businesses, this plug-and-play device features a comfortable ergonomic design and advanced decoding for damaged or high-density codes. Enhance your time attendance Uganda workflow and inventory management with this professional security installation accessory.
Fast reading of paper and screen codes
Plug and play for instant local setup
Accurate decoding of damaged or dirty barcodes
Specifications
| Model Name: | ZKTeco ZKB201S |
| Dimensions (L × W × H): | 167.3 × 70.5 × 81.5 mm |
| Weight: | 122g |
| Voltage & Current: | 5 VDC, Operating: 180mA, Standby: 60mA |
| Color: | Black |
| Host Interface: | Standard USB (Optional RS232) |
| User Indicators: | Decode LED, Adjustable Beeper |
| Scan Mode: | Manual Reading |
| Light Source: | 650nm True Red LED Aiming Pattern |
| Illumination: | White LED |
| Scan Speed: | 10 cm/s |
| Field of View: | Horizontal 41°, Vertical 31° |
| Image Sensor: | 640 × 480 pixels |
| Minimum Print Contrast: | 25% |
| Roll Tolerance: | 0° to 360° |
| Pitch Tolerance: | ±60° |
| Skew Tolerance: | ±55° |
| Minimum Element Resolution: | Code 39: 4mil, Code 128: 4mil, Data Matrix: 6mil, QR Code: 6.7mil |
| Decode Capability: | 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7); 2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, MaxiCode, Aztec, HanXin Code |
| Operating Temperature: | -20°C to 50°C |
| Storage Temperature: | -40°C to 70°C |
| Humidity: | 5% - 95% non-condensing |
| Electrostatic Discharge (ESD): | ±2KV Direct, ±4KV Air |
| Ambient Light Immunity: | Up to 10,000 Lux |
| Decode Ranges: | Code 39 (4mil: 4-10cm, 5mil: 4-13cm, 13mil: 4-25cm, 20mil: 6-30cm); EAN-13 / UPC-A 13mil: 3-25cm; QR Code 20mil: 5-20cm; PDF417 13mil: 5-20cm |
Key Features
Applications & Use Cases
Supermarket Point of Sale
Rapidly scan product barcodes and digital coupons in Kampala retail stores
Warehouse Inventory Tracking
Manage high-density stock labels with precision across Uganda
Express Logistics and Couriers
Streamline parcel sorting and tracking with reliable 2D image scanning
Event Digital Ticketing
Fast verification of QR codes from mobile screens at Kampala venues
