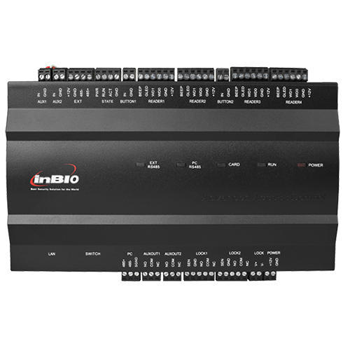

ZKTeco InBio in Uganda

The ZKTeco InBio Series represents the pinnacle of IP-based biometric access control for high-security environments in Uganda. As a premier biometric system supplier, we offer the InBio 160, 260, and 460 controllers to manage up to four doors seamlessly. These panels perform internal fingerprint matching for enhanced speed and security. Designed for Kampala businesses, the InBio series integrates with ZKBio Access IVS software, providing a scalable and robust access control Uganda solution that supports both RFID cards and advanced fingerprint verification.

Advanced internal biometric fingerprint matching technology

Scalable IP-based multi-door controller management

Seamless integration with professional security software

Request a Quote Download Datasheet

Specifications

Number of Doors Controlled 1 Door, 2 Door, 4 Door.
Number of Readers Supported 4(2 RS-485 Reader, 2 26-bit wiegand reader), 8(4 RS-485 Reader, 4 26-bit wiegand reader),12 (8 RS-485 Reader, 4 26-bit wiegand reader) .
Types of Readers Supported: 26-bit Wiegand and RS485 FR Series Reader .
Number of Inputs 3(exit Device and Door Status, 1 AUX) , 6( 2 Exit Device, 2 Door Status, 2 AUX), 12( 4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs2 (1 form C Relay for Lock and One Form C Relay for Aux Output), 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output) ,
Card holders Capacity 30,000 ,30,000 ,30,000 .
Fingerprint Capacity 3,000 , 3,000 , 3,000 .
Log Events Capacity 100,000 ,100,000 ,100,000 .
Communication TCP/IP, RS-485 and WiFi optional .
Package Dimension 350(L), 90(H), 300(W)mm .
Package Weight 3.6kg , 3.6kg , 3.7kg .
CPU 32 bit 400MHz CPU
RAM 32M .
Flash Memory 128M .
Power 9.6V-14.4V DC
Operating Temp 0-45°C .
Operating Humidity 20% t

Key Features

True Internal Biometric Identification: Unlike traditional systems, InBio performs fingerprint matching directly on the panel, ensuring faster processing and higher security for your facility.
Versatile Door Management Options: Available in one, two, and four-door configurations (InBio 160, 260, and 460), providing flexible scalability for growing Ugandan enterprises.
Multi-Protocol Reader Support: Features Wiegand inputs for traditional RFID readers and RS485 ports specifically for ZKTeco FR Series biometric readers, allowing diverse verification modes.
Robust Emergency and Security Functions: Built-in auxiliary inputs and outputs allow for seamless linkage to fire alarms, smoke detectors, and emergency switches to ensure occupant safety.

Applications & Use Cases

Financial Institution Vaults

Secure sensitive banking areas in Kampala with dual-factor fingerprint and RFID card authentication.

Corporate Office Buildings

Manage multi-floor access for hundreds of employees using centralized IP-based controllers and real-time monitoring.

Medical Research Facilities

Regulate entry to restricted laboratories across Uganda while maintaining detailed audit trails and user logs.

Government Administrative Centers

Implement high-level security for state offices with robust hardware that supports up to 30,000 cardholders.

Frequently Asked Questions

The 160 controls one door, the 260 controls two doors, and the 460 manages up to four doors.

The system has a massive capacity, supporting up to 3,000 fingerprint templates and 30,000 cardholders.

Yes, its IP-based communication allows for centralized management via TCP/IP across your local network or WAN.

Yes, the InBio series features standard Wiegand inputs, making it compatible with most 26-bit Wiegand RFID readers.

The controller continues to operate independently and can store up to 100,000 transaction logs locally until the connection is restored.

Yes, it is fully compatible with ZKBio Access IVS and other professional ZKTeco security platforms.

ZKTeco Uganda provides expert after-sales support, including professional installation, system configuration, and technical maintenance in Kampala and nationwide.
