ZKTeco C3-400 in Uganda

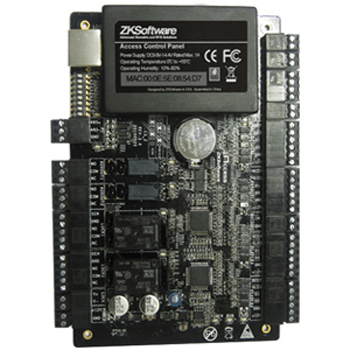

The ZKTeco C3-400 is a powerful IP-based door access control panel engineered to manage up to four doors with professional-grade security. Perfect for high-traffic buildings in Kampala, this versatile controller supports a full range of Wiegand readers, including HID Prox and iClass. As a leading biometric system supplier, we ensure that your access control Uganda setup is scalable and reliable. With advanced features like anti-passback and auxiliary relays, it provides a comprehensive security backbone for any modern Uganda enterprise or commercial facility.

Controls four doors with one panel

Supports HID, iClass, and Wiegand readers

Advanced anti-passback and linkage features

Request a Quote Download Datasheet

Specifications

Number of Doors Controlled 1 Door , 2 Door , 4 Door.
Number of Readers Supported 2,4,4 .
Types of Readers Supported 26-bit Wiegand, others upon request .
Number of Inputs 2 (Exit Device and Door Status) ,6 (2 Exit Device, 2 Door Status, 2 AUX),12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs Form C Relay for Aux Output) .
Card Holders Capacity 30,000
Log Events Capacity 100,000
Weight 7.4lbs (3.35kg) , 7.5lbs (3.4kg) , 7.8lbs (3.55kg) .
Communication TCP/IP, RS-485 and WiFi optional .
Enclosure Powder Coated Aluminium .
Mounting Wall Mount .
Recommended Power Supply 12V DC, 1.5A .
Dimensions (Bundle Only) 15in.X3.15in.X11in.
Dimensions ( Board Only) 6.3in.X4.17in. (160mmX106mm) ,  6.3in.X4.17in.  (160mmX106mm) , 8.58in.X4.17in.  (218mmX106mm)

Key Features

Scalable IP-Based Network Architecture: The C3-400 easily integrates into your existing network via TCP/IP or RS-485, featuring an auto-discovery tool that simplifies the configuration of security parameters for Uganda business networks.
Universal Reader Compatibility: Offers total flexibility by supporting the full range of Wiegand-output readers, including stylish ZK KR-series, HID Prox, iClass, and XceedID multi-technology cards for diverse user needs.
Professional Access Control Intelligence: Comes standard with high-level security functions such as anti-passback, first-card opening, multi-card identification, and duress password entry to ensure maximum protection.
Robust Data Integrity and Capacity: Capable of supporting 30,000 badge users and storing 100,000 transactions in internal memory, ensuring that all access logs are preserved even during power outages in remote Ugandan regions.

Applications & Use Cases

Multi-Floor Office Buildings

Centralize security for four different entry points in Kampala high-rises using a single, efficient IP controller.

Educational Institution Campuses

Secure laboratory wings and administrative blocks across Uganda by integrating various card reader technologies into one network.

Manufacturing and Warehousing

Manage vehicle and personnel gates simultaneously with robust auxiliary relays for lights and intrusion detection.

Health Care Facilities

Restrict access to sensitive pharmacy areas and patient records while maintaining a detailed log of up to 100,000 events.

Frequently Asked Questions

The C3-400 is specifically designed to manage and control up to four doors simultaneously.

Yes, the panel supports any reader with a Wiegand output, including HID Prox, iClass, and XceedID.

The controller stores up to 30,000 users and 100,000 events in its internal memory, which is preserved even if power is lost.

Yes, C3 controller firmware can be upgraded easily without advanced tools, extending the value of your investment.

Absolutely, it includes advanced features like anti-passback, first-card opening, and multi-card verification.

Yes, auxiliary relays can be programmed to control lights, alarms, and intrusion detection panels.

The panel supports both TCP/IP and RS-485 communications for flexible network installation in Uganda.

Yes, a free SDK is available for software developers to integrate the C3-400 into existing security applications.

ZKTeco Uganda offers comprehensive support including professional installation, system configuration, and technical maintenance across Kampala and beyond.
